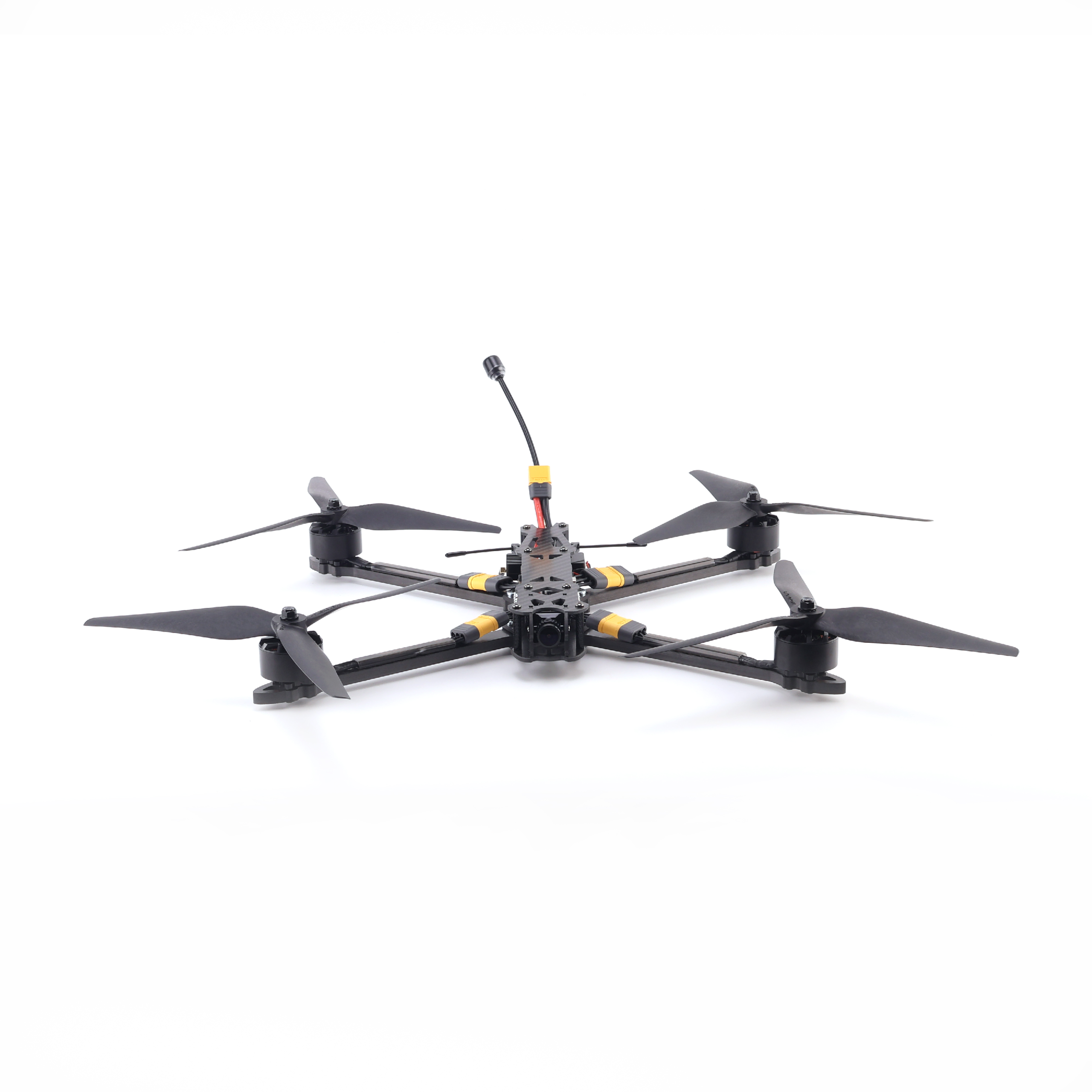

10-inch Key Parameter Configuration
| 10-inch Key Parameter Configuration | ||
 |
Payload | 2.5kg ~ 3kg |
| With Load Flying Time | 8–12min | |
| No Load | 30min | |
| Battery | 8000mAh 6S | |
| Flying Distance | 8–10km | |
| Max Speed | 150km/h | |
| Max Altitude | 6000m | |
| Specification | ||

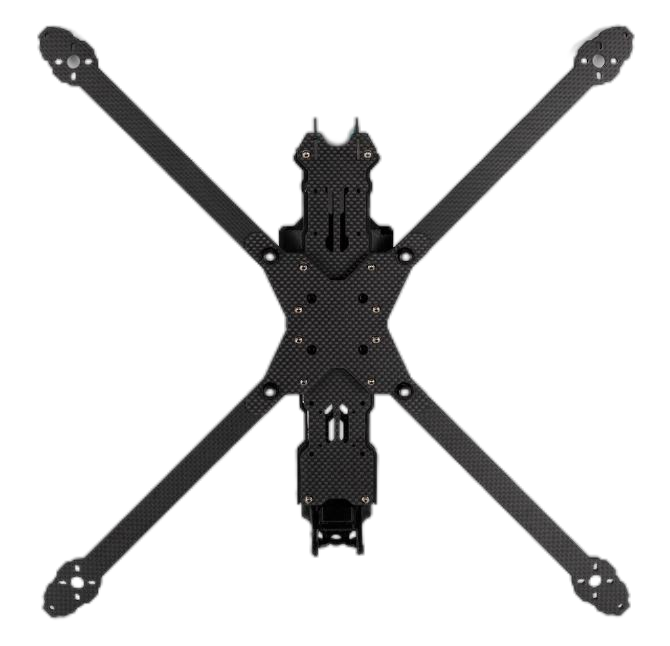

| Frame: 10-inch Carbon | ||
 |
Structure | Mark 4 |
| Wheelbase | 427mm | |
| Bottom Plate Thickness | 3mm | |
| Top Plate Thickness | 2mm | |
| Carbon Plate Material | T300/T700 | |
| Height of Electronic Device Layer | 25mm | |
| Arm Thickness | 7mm | |
| Camera Spacing | 20mm | |
| Stack Mounting Hole | M3 × 30.5mm | |
| VTX Mounting Hole | M2 × 20 / 25.5mm, M3 × 30.5mm | |
| Propeller Installation Size | Max 10.0 inch | |
| Motor Mounting Hole | 16mm × 16mm / 19mm × 19mm | |
| Top Plate Size | 21.6 × 5cm | |
| Bottom Plate Size | 22.3 × 10.8cm | |

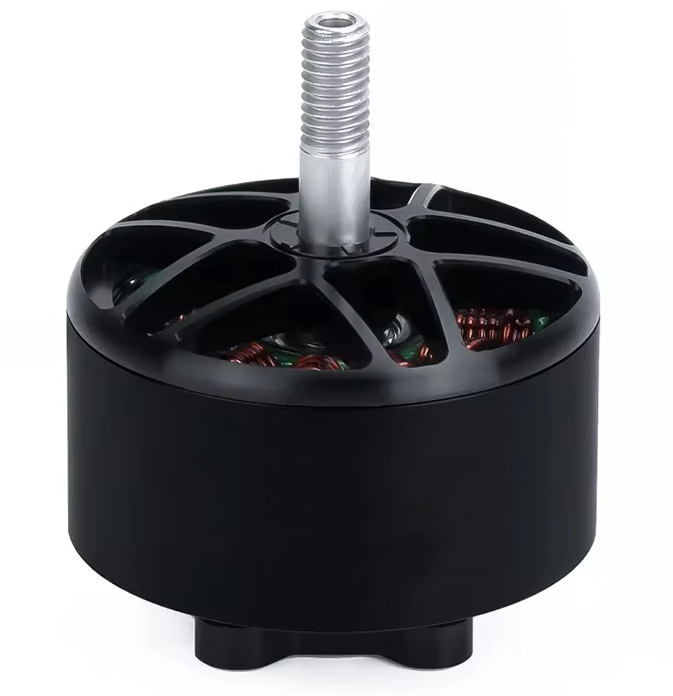

| Motor: 3115 900KV | ||
 |
KV Value | 900KV |
| Operating Rated Voltage | 3–6S | |
| No-load Current | 1.28A / 12V | |
| Phase Resistance | 38mΩ | |
| Motor Weight | 112.3g | |
| Maximum Current | 64.7A | |
| Maximum Power | 1617W | |
| Maximum Thrust | 4185g | |
| Motor Size | Φ37.1 × 32.1mm | |

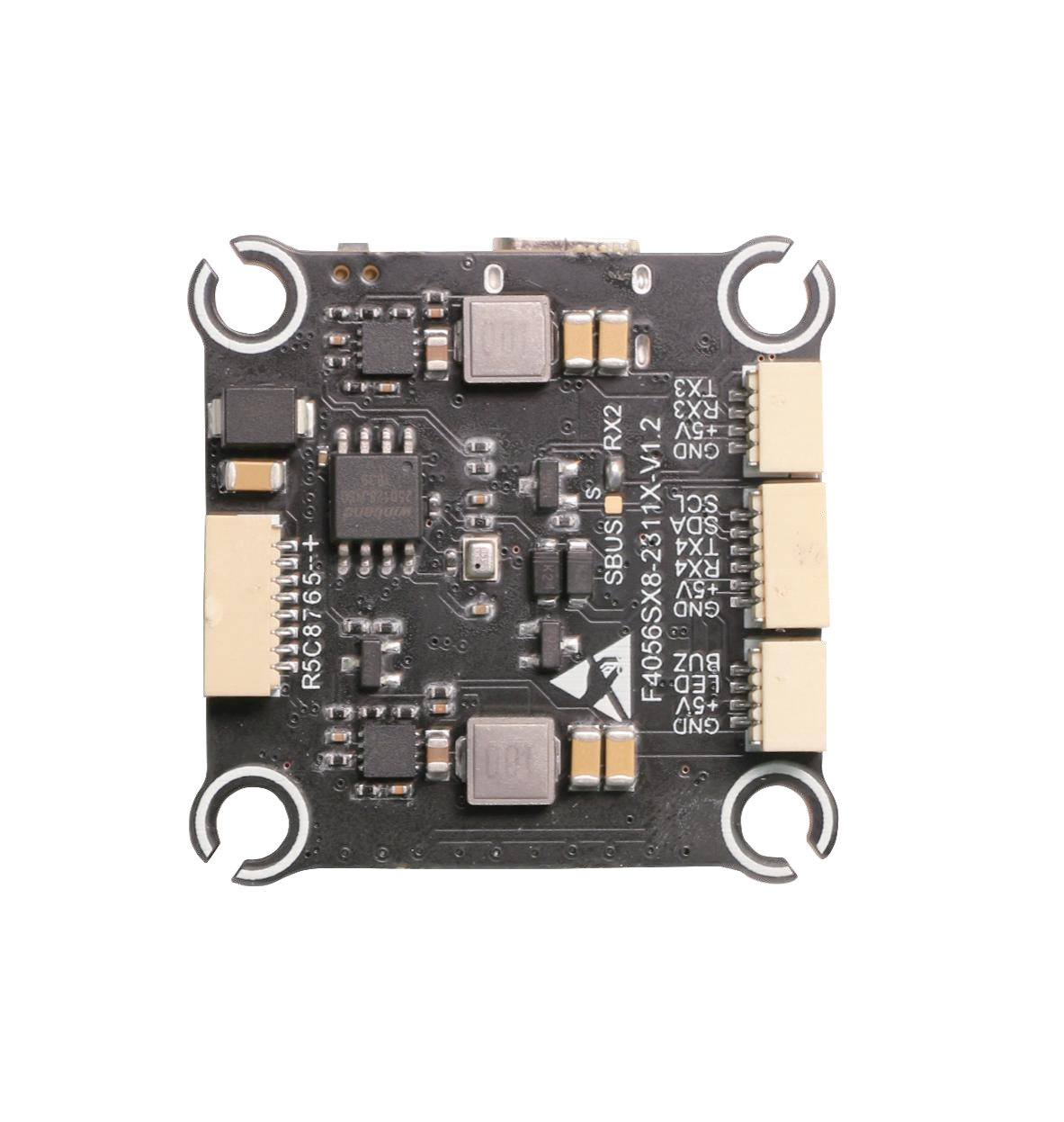

| FC: F405 | ||
 |
Size | 36 × 36mm |
| Mounting Holes | 30.5 × 30.5mm | |
| 9V Output | 9V regulated power supply output, max current 2A | |
| 5V Output | 5V regulated power supply output, max current 3A | |
| 4.5V Output | Receiver power connector, USB power supply only | |
| M1 | Camera reference pin | |
| CR | Current monitoring port | |
| VI | Camera input port | |
| VO | Graphic output interface | |
| LED | RGB light strip interface | |
| B- | Connect to buzzer negative terminal; positive terminal connects to B+ | |
| RC | Receiver SmartPort interface | |
| Rssi | Rssi signal input port | |

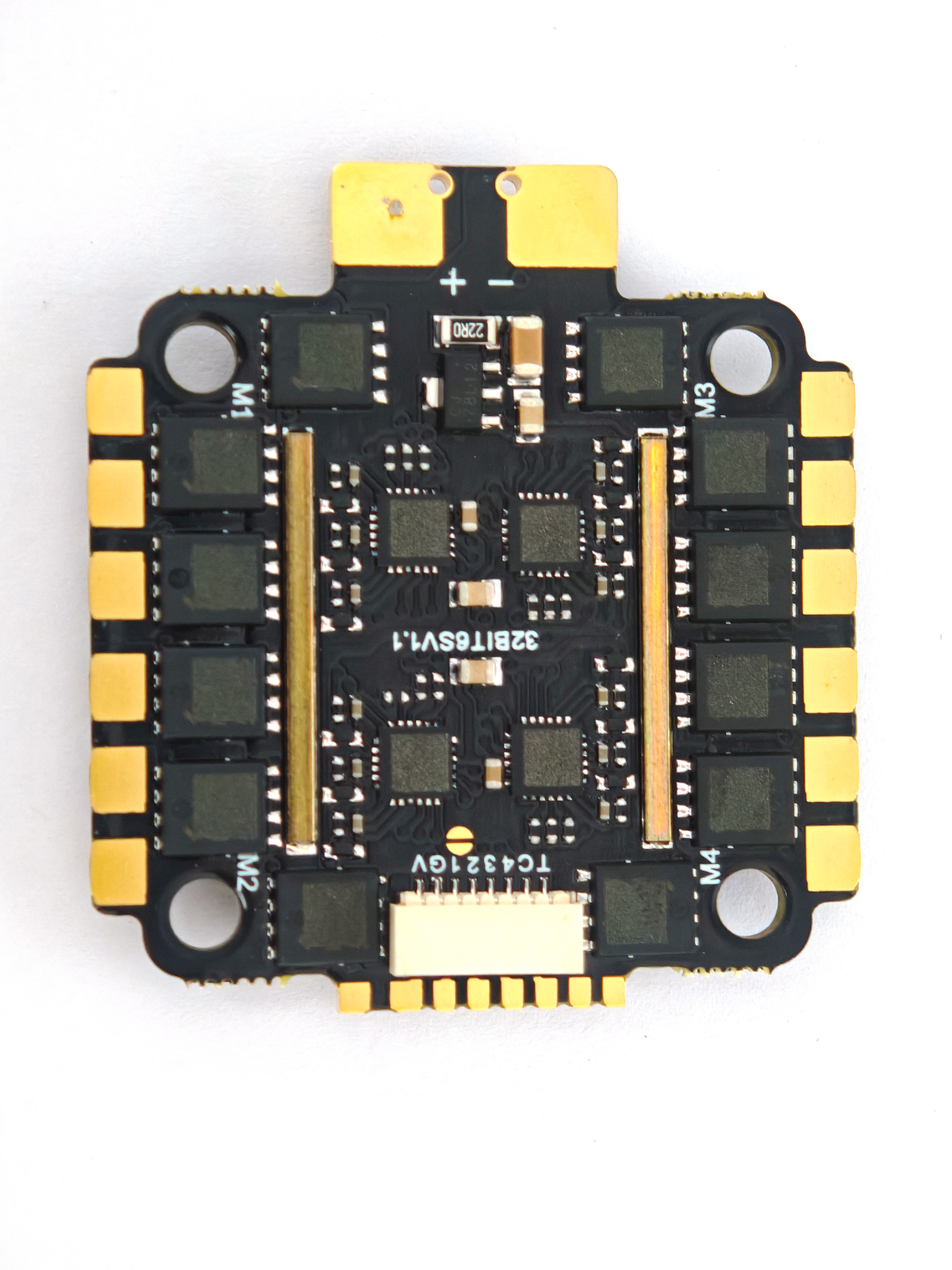

| ESC: 60A-6S | ||
 |
Model | X82311X |
| Continuous Current | 60A | |
| Burst Current | 70A (10s) | |
| BEC | No | |
| Current Sensor | Yes | |
| Battery Cells | 3–6S | |
| Weight | 21.5g | |
| Size | 44.5 × 39mm | |
| Mounting Hole Spacing | 30.5 × 30.5mm | |
| Camera: B19 Product Manual Cam 1500TVL | ||
 |
Model | HD 1500TVL, upgraded version with OSD tuning board |
| Image Sensor | 1/3 CMOS | |
| Pixels | 1500TVL | |
| Lens | 2.1mm | |
| Signal System | PAL / NTSC, adjustable via OSD | |
| Signal-to-Noise Ratio | ＞60dB (AGC OFF) | |
| Electronic Shutter Speed | PAL: 1/50–100,000; NTSC: 1/60–100,000 | |
| Electronic Shutter | PAL: 1/50–100,000; NTSC: 1/60–100,000 | |
| Automatic Gain Control（AGC） | Low / Medium / High | |
| Backlight Compensation（BLC） | Yes | |
| Minimum Illumination | 0.001Lux / 1.2F | |
| WDR | D-WDR | |
| DNR | 3DNR | |
| Power Supply | DC 5V–30V | |

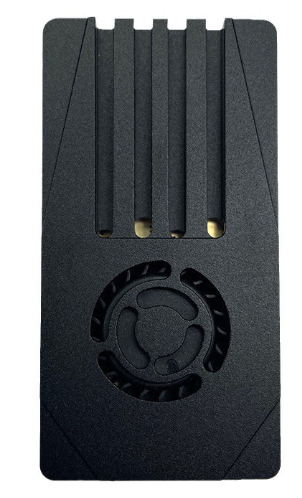

| VTX: 4.9 / 5.8G 3W | ||
 |
Supported Voltage | 9–36V |
| BEC | 5V | |
| Transmission Power | 25 / 1000mW, 2000mW / Max | |
| Antenna Interface | MMCX | |
| Output Power | 3W / 3000MW | |
| Channels | 72CH A / B / E / F / R / L / O / U / H | |
| Video Transmission Protocol | IRC | |
| Mounting Holes | 20 × 20mm / M2 | |
| Size | 54mm × 28mm × 13mm | |
| Weight | 32.5g | |
| Antenna: 5.8G RHCP 150MM | ||
 |
The whole is made of imported PC+ABS material which can withstand high strength impact. | |
| Impact resistant double-sheathed semi-rigid cable. | ||
| Root reinforcement design, 360° protection. | ||

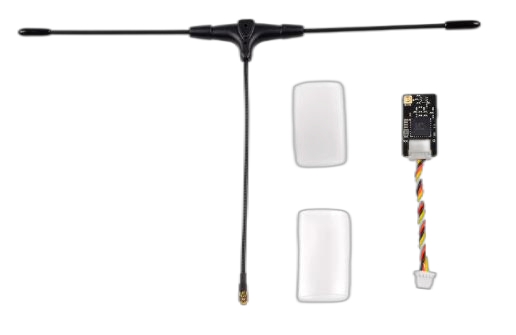

| RX: ELRS 915MHz | ||
 |
Processing Chip | ESP8285 |
| RF Chip | SX1276IMLTRT | |
| Power Input | 5V | |
| Operating Current | 100mA | |
| Operating Protocol | CRSF | |
| Receiving Frequency Range | 915MHz or 868MHz | |
| Size | 12 × 12 × 3mm | |
| Weight | 0.6g, without antenna | |
| Antenna Connector | IPEX1 | |
| Telemetry Output Power | ＜17dBm | |
| Firmware Update Method | WIFI | |

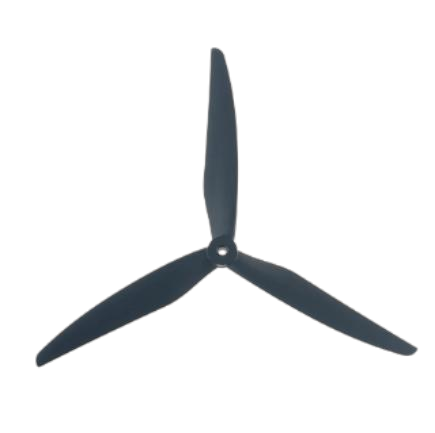

| Propellers: Gemfan Prop 1050 | ||
 |
Type | 1050 |
| Blades | 3 | |
| Material | Fiberglass Nylon | |
| Pitch | 5 inch | |
| Center Hole Inner Diameter | 5mm | |
| Weight/g | 17g | |
| Inner packaging: 1kg / 400 × 400 × 80mm | ||
| Outer packaging (20 sets): 20kg / 370 × 680 × 700mm | ||
